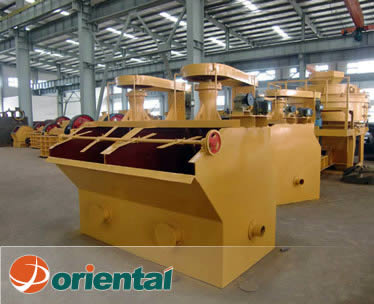

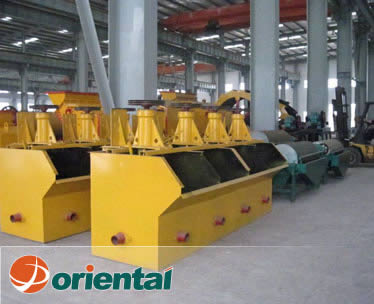

ZSF Series Flotation Machine
ZSF Series Flotation Machine Inquiry

After years' exploration in mining industry, the technology of flotation has been more and more professional. According to the changing of market conditions, oriental brand flotation machine has been changed from single cell type to open flow type to meet modern requirements. Flotation machine is mainly used for mineral separation of the non-ferrous metal like copper ore, zinc ore, lead ore, nickel ore, gold ore, etc. It can be also used for the rough concentration and selected concentration of ferrous metal ore and nonmetallic ore.

Technical data
Model Volume (m3) Impeller Dia (mm) Rotary Speed (r/min) Capacity (M3/min) Air flow (m3/m2 min) Single Tank Weight (kg) Power (kw) Dimension (LxWxH) (mm)
ZSF-0.15 0.15 200 536 0.06-0.18 0.8-1 269 1.5/0.55 500x500x600
ZSF-0.37 0.37 296 386 0.2-0.4 0.8-1 468 1.5/0.55 700x700x750
ZSF-0.7 0.7 350 400 0.3-0.9 0.8-1 805 3/1.1 820x900x950
ZSF-1.2 1.2 450 312 0.6-1.2 1-1.2 1373 5/1.1 1100x1100x1100
ZSF-2.8 2.8 550 268 1.5-3.5 1-1.2 2138 11/1.5 1700x1600x1150
ZSF-4 4 650 220 2-4 1-1.2 2582 15/1.5 1850x2050x1200
ZSF-8 8 760 191 4-8 0.9-1 4129 30/1.5 2200x2900x1400
ZSF-10 10 760 191 5-10 0.9-1 4486 30/1.5 2200x2900x1700
ZSF-16 16 760 191 5-16 0.9-1 8320 30*2/1.5 2850x3800x1700
ZSF-20 20 760 191 5-20 0.9-1 9828 30*2/1.5 2850x3800x1750
Note: Any change of ZSF Series Flotation Machine technical data shall not be advised additionally.
Features

1. Self-suck air without foam pump, low power consumption;
2. Vertical recirculation of slurry can keep solids in suspension;
3. Pulp-air intensive mixed help for solids lifting and suspending;
4. Large volumes of pulp sucked can dispel concentrated soilds at the bottom;
5. Promote positive vertical circulation of pulp;
6. With feed pipe and impeller make sure the pulp is 100% mixed in every cell.

Application
ZSF Series Flotation Machine From China
1 2
