Mobile Cone Crushing Plant Inquiry

Mobile Cone Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.

Technical data

Mobile cone crusher plant model and main unit parameter:

Parameter model Transport length (mm) Transport width (mm) Transport height (mm) Max. height (mm) Max. width (mm) Conveyor height (mm) Total weight (ton)
Y3S1548Y900 12500 2550 4300 6400 2800 4000 43
Y3S1848S36 12500 2800 4500 6700 3000 4000 47
Y3S1860S51 14000 2800 4500 6700 3000 4200 53
Y3S2160H220 14000 3000 4500 6700 3200 4200 48

Configuration:

Parameter model Screen model Cone crusher model Conveyor model under screen Capacity (t/h) Power (kw)
Y3S1548Y900 3YZS1548 PYB900 B500X7M 50-200 75
Y3S1848S36 3YZS1848 ZTS36 B650X7M 70-300 99-134
Y3S1860S51 3YZS1860 ZTS51 B650X8M 120-400 212.5-220.5
Y3S2160H220 3YZS2160 HP220 B800X8M 140-450 257.5-264.5
Note: Any change of Mobile Cone Crushing Plant technical data shall not be advised additionally.
Features

● Incorporated design.
● Truck mounted.
● Quick road transportation.
● With support legs on truck, quick to set-up.

Application

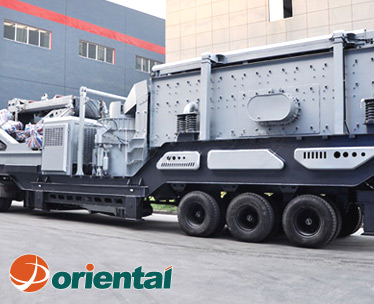

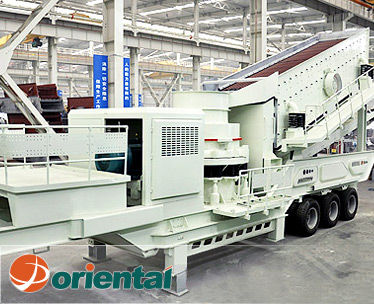

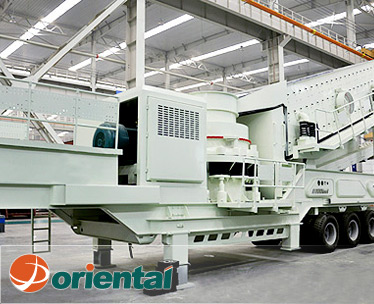

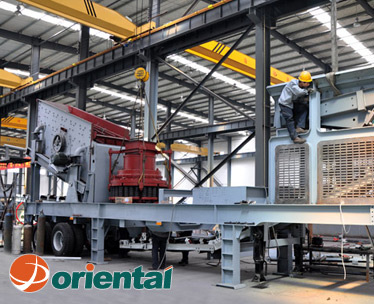

Mobile Cone Crushing Plant From China
1 2 3 4 5 6
