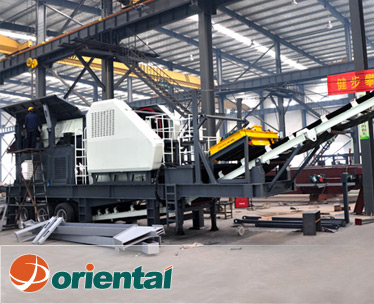

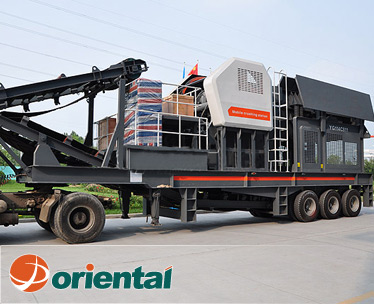

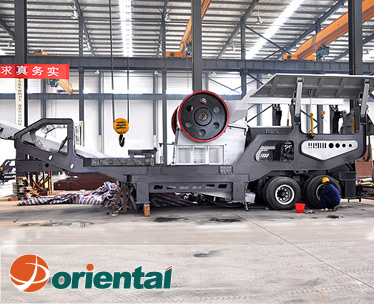

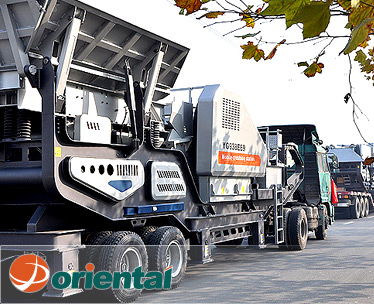

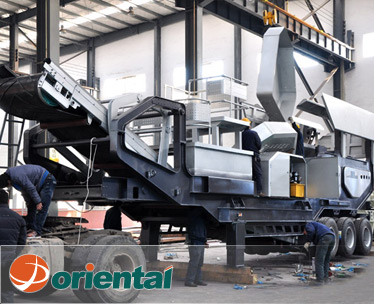

Mobile Jaw Crushing Plant
Mobile Jaw Crushing Plant Inquiry

Mobile Jaw Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.

Technical data
Mobile jaw crusher plant model and main unit parameter:
Parameter model Transport length (mm) Transport height (mm) Transport width (mm) Max. height (mm) Max. width (mm) Belt conveyor height (mm) Total weight (ton)

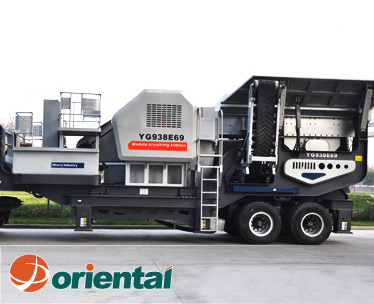

YG938E69 11200 3900 2450 4700 2900 2600 42
YG1142E710 13000 4400 2450 5100 3100 2600 55
YG1349E912 15000 4800 3000 5600 3300 2800 72
Configuration
Parameter model Feeder spec Jaw crusher Belt conveyor Extended belt conveyor Generator Capacity (t/h) Power (kw)
YG938E69 GZD-960X3800 PE600X900 B650X7M Optional Optional 70-150 91.5
YG1142E710 GZD1100X4200 PE750X1060 B800X9M Optional Optional 90-200 134
YG1349E912 GZD-1300X4900 PE900X1200 B1000X11M Optional Optional 150-300 146
Note: Any change of Mobile Jaw Crushing Plant technical data shall not be advised additionally.
Features

● Incorporated design.
● Truck mounted.
● Quick road transportation.
● With support legs on truck, quick to set-up.

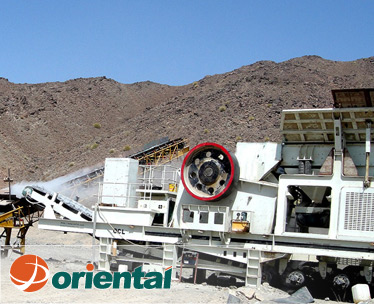

Application
Mobile Jaw Crushing Plant From China
1 2 3 4 5 6 7
