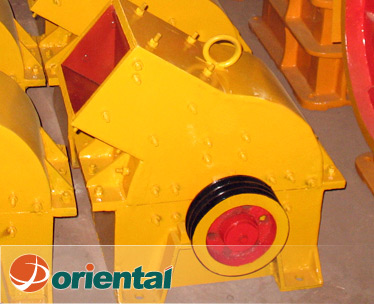

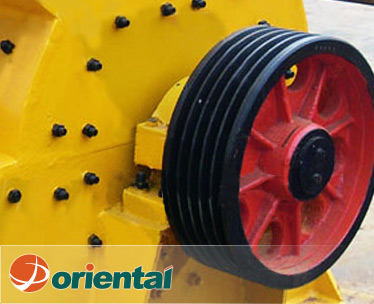

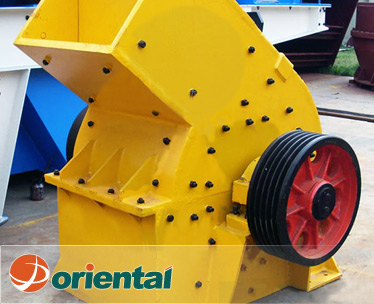

Hammer Crusher
Hammer Crusher Inquiry

The Hammer Crusher is widely used in the industries of mining, building materials, chemical industry, metallurgies and fodder. The Hammer Crusher is applicable for secondary and fine crushing of materials with middle or middle minus hardness such as barite, limestone, terrazzo, silicasandstone, coal, coke, gypsum, aluminum sulfate, slag, etc.

Technical data
Model Max.Feeding Size (mm) Output Size(mm) Capacity(t/h) Motor Power(kw) Weight(t)
PC400×300 100 <15 3-10 11 0.86
PC600×400 120 <15 8-15 22 1.55
PC800×600 150 <20 10-40 55 4.8
PC1000×800 200 <30 16-65 110 8.1
PC1300×1200 280 <40 50-200 240 14.8
PC1600×1600 350 <50 100-350 480 37.5
Note: The capacity above is tested as per medium hard limestone.
Any change of Hammer Crusher technical data shall not be advised additionally.
Features

● simple to operate;
● high capacity;
● low investment.

Application
Hammer Crusher From China
1 2 3
