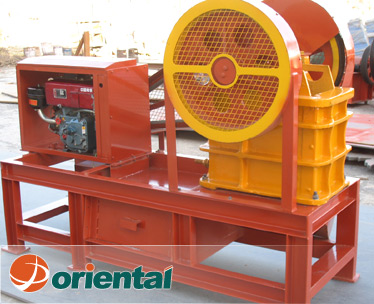

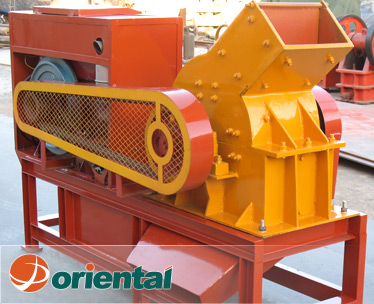

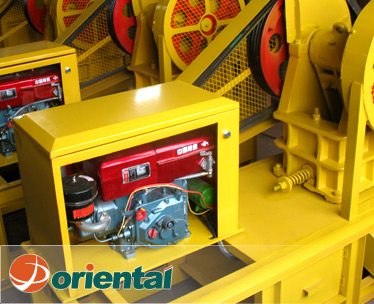

Diesel Engine Crusher
Diesel Engine Crusher Inquiry

The Diesel Engine Crusher is widely used where there is not enough electricity or no electricity at all. They are applicable to do secondary or fine crushing of all kinds of rocks and stones. The Diesel Engine Crusher is in compact in structure and easy to operate. We also provide portable ones according to our customers’ requirements.

Technical data
Model Feeding Size (mm) Discharging Size (mm) Capacity (t/h) Power for Diesel Engine(kw) Weight(kg) Overall Dimension(mm)
PEC1525 <125 10-40 1-3 5.7 920 1836×1030×1408
PEC2540 <200 20-50 5-20 15.5 3150 2805×1210×1860
PCC3040 <70 ≤12 ≤8 11.5 960 2210×1195×1360
PCC4060 <100 ≤15 ≤15 23 1650 2612×1205×1670
Note: The capacity above is tested as per medium hard limestone.
Any change of Diesel Engine Crusher technical data shall not be advised additionally.
Features

The Diesel Engine Crusher is in compact in structure and easy to operate. We also provide portable ones according to our customers' requirements.

Application
Diesel Engine Crusher From China
