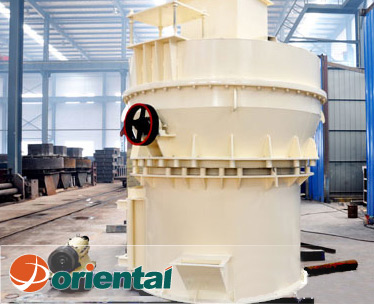

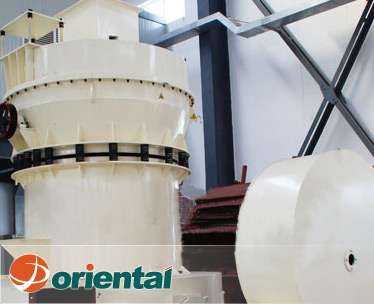

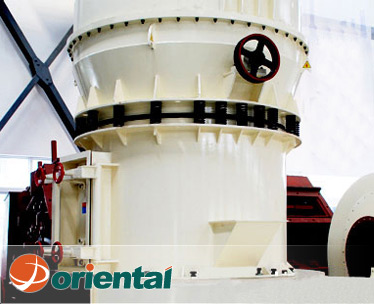

Trapezium Mill
Trapezium Mill Inquiry

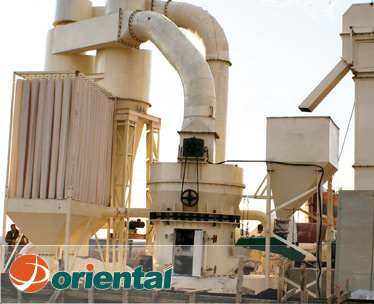

Trapezium Grinding Mill is mainly consists of main frame, speed reducer, powder concentrator, induced draught fan, dust collector, piping device, integrator, and motor, etc.The whole grinding mill line include Jaw Crusher, Bucket Elevator, Mill Deceleration Machine, Vibraing Feeder, Main Frame, Blower, Powder Concentrator, Powder Collecting System, Piping Device,and Bag Deduster.

Technical data
Item\Model TGM100 TGM130 TGM160
Roller piece 4 5 6
Roller Diameter×Height(mm) Ф320×200 Ф410×240 Ф440×270
Ring Inner Diameter×Height(mm) Ф980×200 Ф1280×240 Ф1600×270
Speed Of Main frame (r/min) 130 103 82
Max. Input Size (mm) <25 <30 <35
Product Size (mm) 1.6~0.045
fineness can reach to 0.038
1.6~0.045
fineness can reach to 0.038
1.6~0.045
fineness can reach to 0.038
Capacity (t/h) 3~8 6~15 9~22
Overall Dimension (mm) 9910×5365×8310 7910×7000×9645 12550×5700×8355
Weight (t) 16 26.1 35
Note: Any change of Trapezium Mill technical data shall not be advised additionally.
Features

● Adopt the new wear-resistant materials to improve crushing efficiency, and extend the using life of the roller and the ring. The roller and ring are designed in inverted trapezium, which reduce the material's slip velocity between rollers and ring, extend grinding time, and enhance crushing efficiency and fineness.
● Increased the density of the classifier's blades so that the production has been greatly increased compared with other machines with the same rotating speed and motor.
● With good sealing performace, tha machine reduced the noise and vibration, enhanced the fineness of the products, and improved the working efficiency.
