Vibrating Screen
Vibrating Screen Inquiry

The Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.

Technical data
Model Screen Cloth Size(mm) Screen Decks Screen Opening Size Max.Feeding Size(mm) Capacity(t/h) Motor Power(kw) Weight(t) Overall Dimension(mm)
2YZS1237 3700×1200 2 3-50 200 10-80 11 2.40 4773×2050×2247
3YZS1237 3700×1200 3 3-50 200 10-80 11 3.05 4773×2050×2700
2YZS1548 4800×1500 2 3-100 400 30-200 15 5.35 5900×2270×1620
3YZS1548 4800×1500 3 3-100 400 30-200 15 6.07 5900×2270×1670
2YZS1848 4800×1800 2 3-100 400 50-280 18.5 6.15 5900×2560×1620
3YZS1848 4800×1800 3 3-100 400 50-280 18.5 6.93 5900×2560×1670
2YZS1860 6000×1800 2 3-100 400 65-550 22 6.95 7060×2560×1620
3YZS1860 6000×1800 3 3-100 400 65-550 22 7.70 7060×2560×1670
4YZS1860 6000×1800 4 3-100 400 65-550 30 8.70 7060×2560×1930
2YZS2160 6000×2100 2 3-100 400 81-720 22 8.48 7130×2990×1760
3YZS2160 6000×2100 3 3-100 400 81-720 30 9.24 7130×2990×1810
4YZS2160 6000×2100 4 3-100 400 81-720 30 10.45 7130×2990×1930
2YZS2460 6000×2400 2 3-150 400 100-810 30 12.35 7130×4121×1810
3YZS2460 6000×2400 3 3-150 400 100-810 37 13.85 7130×4121×1940
4YZS2460 6000×2400 4 3-150 400 100-810 37 15.60 7130×4121×2080
Note: Any change of Vibrating Screen technical data shall not be advised additionally.
Features

● Stable performance under violent vibrating, for the fixing bolts are widely applied to connecting the main frame and the screen tightly.
● Large handling capacity, which can reach 810 ton per hour.
● Long flow line and various screening specifications.
● Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.

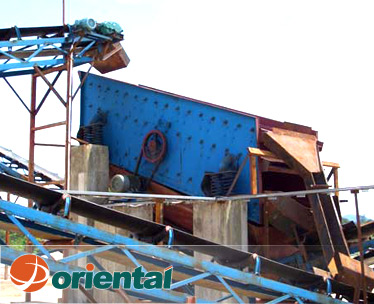

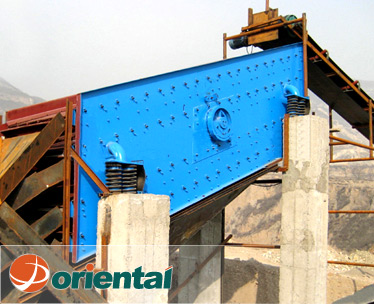

Application
Vibrating Screen From China
