Tracked Mobile Screening Plant
Tracked Mobile Screening Plant Inquiry

In mobile crushing and screening process, whether the customer require two-stage or three- stage plant, the combination of LD series mobile crushing and screening plants can provide the customer optimumsolution, and our outstanding designing teamare ready to customize a plant o fit all the customer specific requirements.

Technical data
Model LD-2YK1848 LD-3YK1860 LD-2YK2160 LD-3YK2160
Screen 2YK1848 3YK1860 2YK2160 3YK2160
Hopper Volume (M3) 3 5 5 5
Loading Height (mm) 2100 2400 2400 2400
Belt Feeder B800x7.2 M B1000x8.5 M B1000x8.5 M B1000x8.5 M
Main Conveyor B800x10 M B1000x12 M B1000x12 M B1000x12 M
Height of Main Conveyor (mm) 2400 2800 2800 2800
Side Conveyor B500x7 M B500x7 M B500x7 M B500x7 M
Height of Side Conveyor (mm) 3500 3500 3500 3500
Generator (KW) 130 130 160 160
Transport Length (mm) 12000 13500 14000 14000
Transport Width (mm) 3200 3200 3400 3400
Transport Height (mm) 3500 3900 3900 3900
Total Weight (t) 23.8 27 31.2 32
Note: Any change of Tracked Mobile Screening Plant technical data shall not be advised additionally.
Features

● Move easily.
● Compactly structured and simple to operate.
● High cost-performance ratio.
● Wide application.
● Superior performance and convenient to maintain.
● Adjustable configuration

Application

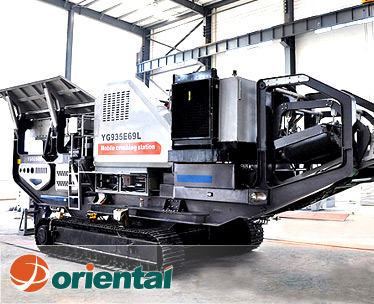

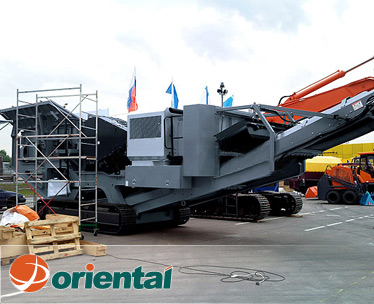

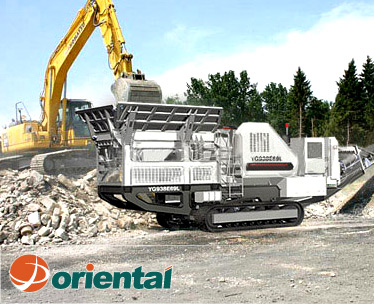

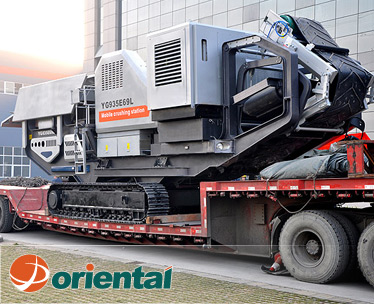

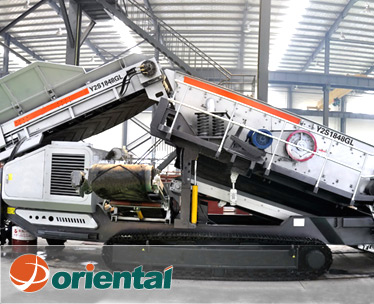

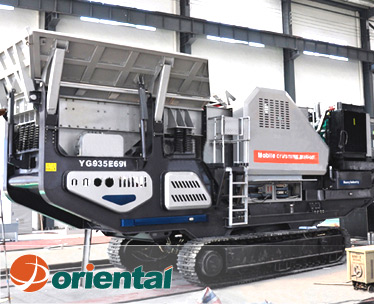

Tracked Mobile Screening Plant From China
1 2 3 4 5 6
