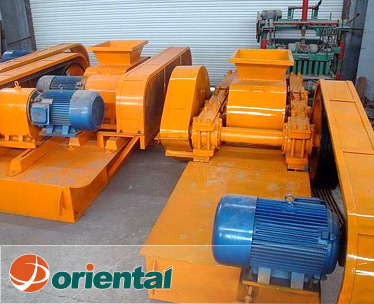

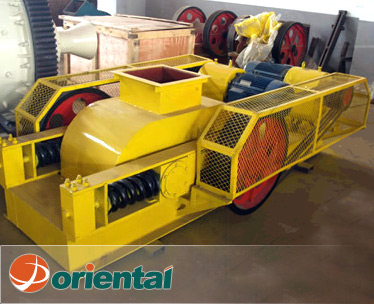

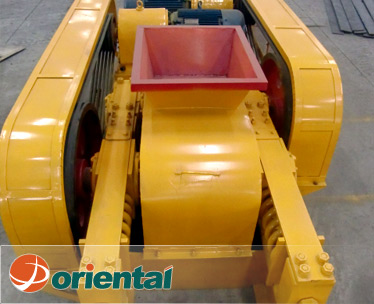

Roller Crusher
Roller Crusher Inquiry

The roller crusher has widely application in the industries of mining, building materials, chemical industry, metallurgy, etc. The roller crusher can do secondary and fine crushing of materials with middle hardness or middle minus hardness, such as mineral, rocks, coke, coal, slag, scoria, and fire-proof material, etc.

Technical data
Model Feeding Size (mm) Output Size (mm) Capacity (t/h) Motor Power (kw) Weight (t) Overall Dimension (mm)
2PG400×250 <35 ≤2-8 2-10 2×5.5 1.3 2110×870×810
2PG610×400 <65 ≤2-20 5-20 2×15 3.9 3510×1420×1030
2PG750×500 <75 ≤2-25 10-40 2×18.5 9.5 4210×1630×1260
2PG800×600 <80 ≤2-25 12-45 2×22 10.8 4505×1780×1320
2PG1000×700 <100 ≤3-30 20-65 2×30 14.9 5310×2175×1595
2PG1200×800 <120 ≤3-35 35-80 2×37 25.5 6290×2270×1870
2PG1500×800 <130 ≤3-45 50-120 2×75 33.7 7460×2410×2290
2PG1600×1000 <150 ≤3-50 60-140 2×90 41.2 8220×2680×2475
Note: The capacity above is tested as per medium hard limestone.
Any change of Roller Crusher technical data shall not be advised additionally.
Features

● low energy consumption;
● adjustable space between rollers of the crusher, thus improving the capacity;
● the movable and fixed rollers are interconnected by the coupling, thus obviating the frequent replacement of the belts.

Application
