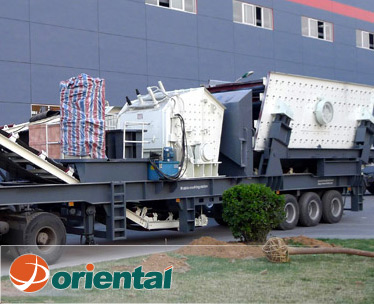

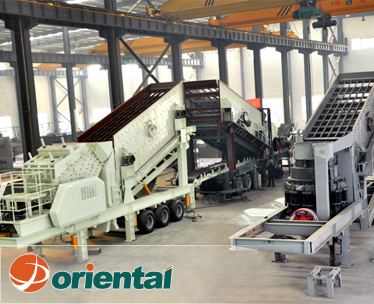

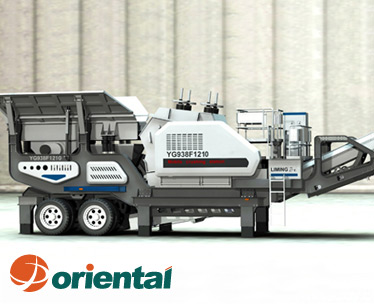

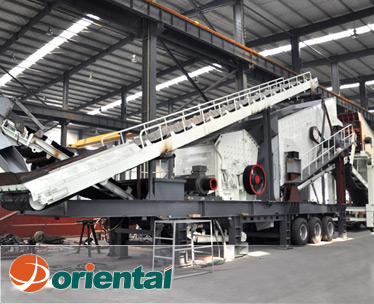

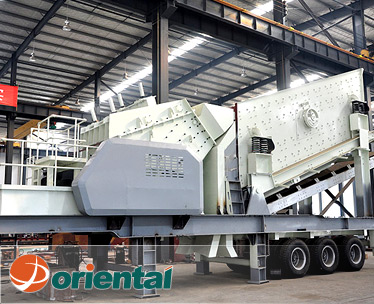

Mobile Impact Crushing Plant
Mobile Impact Crushing Plant Inquiry

Mobile Impact Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.

Technical data

Mobile impact crusher plant model and main unit parameter:

Parameter model Transport length (mm) Transport width (mm) Transport height (mm) Max. height (mm) Max. width (mm) Belt conveyor height (mm) Total weight (ton)
Y3S1548F1010 11000 2500 4000 6000 2800 4000 42
Y3S1848F1210 12200 2800 4200 6500 3000 4000 46
Y3S1860F1214 12500 2800 4500 6500 3000 4200 51
Y3S2160F1315 13500 3000 4800 6800 3200 4200 57

Configuration:

Parameter model Screen model Impact crusher model Belt conveyor model capacity (t/h) Power(kw)
Y3S1548F1010 3YZS1548 PF1010 B500X7M 50-250 70-90
Y3S1848F1210 3YZS1848 PF1210 B650X7M 70-300 128.5-150.5
Y3S1860F1214 3YZS1860 PF1214 B650X8M 90-400 154-190
Y3S2160F1315 3YZS2160 PF1315 B800X8M 120-450 210-297
Note: Any change of Mobile Impact Crushing Plant technical data shall not be advised additionally.
Features

● Incorporated design.
● Truck mounted.
● Quick road transportation.
● With support legs on truck, quick to set-up.

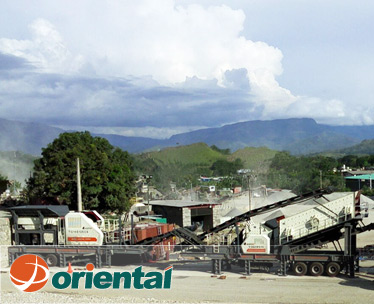

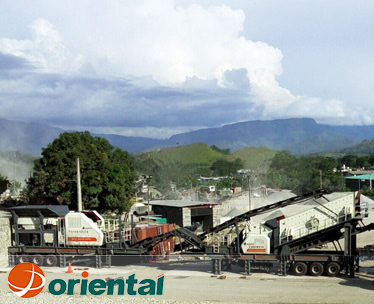

Application
Mobile Impact Crushing Plant From China
