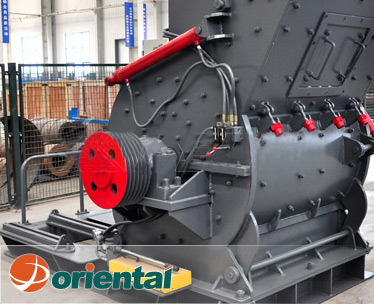

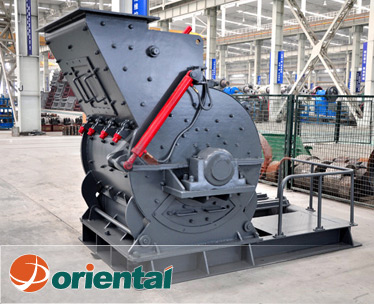

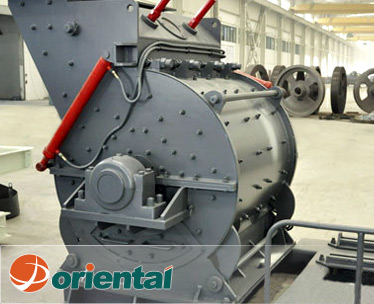

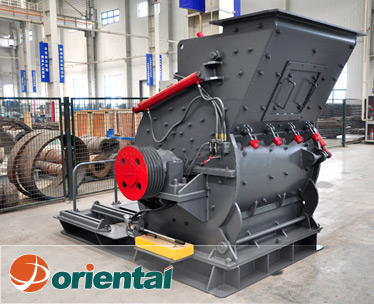

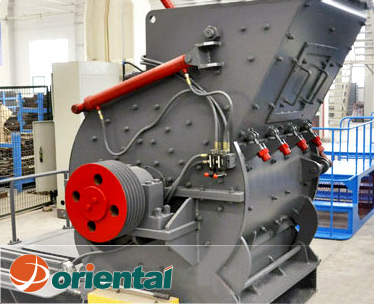

Coarse Powder Hammer Mill
Coarse Powder Hammer Mill Inquiry

Coarse Powder Hammer Mill is widely used in mining, building materials, chemical industry, metallurgy, cement, ceramic, refractory industry and so on. The Coarse Powder Hammer Mill is suitable for secondary and fine crushing of all kinds of rocks with compressive strength less than 320 MPa.

Technical data
Model PC4008-75 PC4012-90 PC4015-132
Rotor diameter / mm 750 900 1150
Rotor length / mm 800 1200 1500
Rotor speed r / min 800-1000 800-1000 550-800
Inlet Size /mm 320×930 400×1200 500×1500
Max feed size / mm <50 <50 <100
The particle size / mm 0-3 0-3 0-8
Capacity t / h 10-30 30-60 60-100
Motor Power/Kw 55-75 75-90 110-132
Hammerhead Quantity/a 18 32 32
Dimension L*W*H/mm 2310*1665*1610 2840*2100*2020 3720*2650*2540
Note: Any change of Coarse Powder Hammer Mill technical data shall not be advised additionally.
Features

The Coarse Powder Hammer Mill is of high capacity, high crushing ratio, simple structure, uniform output granularity as well as low electricity consumption, and is easy to maintain and operate. The moisture of the raw material should be less than 10% - 15% to avoid the blocking of material during the crushing process.

Application
