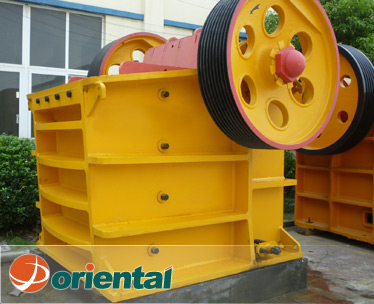

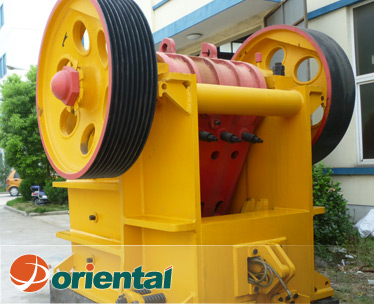

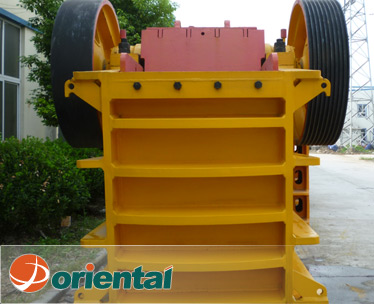

V-Series Hydraulic Jaw Crusher
V-Series Hydraulic Jaw Crusher Inquiry

V Series Hydraulic Jaw Crusher is another big step forward Oriental group has made, on the road to continuously upgrading Oriental crushing equipments. Its crushing efficiency has improved enormously with the innovated cavity design, and the hydraulic system makes possible the high efficiency and smooth operation of the machine. V Series Hydraulic Jaw Crusher are capable of crushing almost all kinds of mining materials, no matter how hard it is, thus enabling it to cast the traditional Jaw Crusher into the shade.

Technical data
Model Max.Feeding Size(mm) Power(kw) Capacity(t/h)
Close Discharge Size(mm)
Weight(t)
50 70 80 100 125 150 200 225 250 300
VPE400×600 600×400 30-40 26 38 45 60 75           6.32
VPE500×750 750×500 45-60 40 60 70 90 112 130         8.75
VPE600×900 900×600 60-75     105 130 160 182         14
VPE750×1050 1050×750 90-115       180 210 237 294       22.5
VPE800×1200 800×1200 115-150       210 250 280 320 350     26.65
VPE1000×1200 1200×1000 130-150         265 302 370 402     44.5
VPE800×1350 800×1350 135-150       250 300 340 420 450     27.77
VPE1000×1500 1500×1000 185-225         310 350 440 480 510   50.38
VPE1200×1500 1500×1200 185-265           415 500 540 580 630 78
Note: The capacity above is tested as per medium hard limestone.
Any change of V-Series Hydraulic Jaw Crusher technical data shall not be advised additionally.
Features

● Unique heavy-duty design, superior steel plate welded by CO2 gas shielded welding and annealed to be durable;
● Alloy eccentric shaft, forged and lathed to be superior in bearing capacity;
● High-quality shaft and oil lubricating to ensure the long service life, smooth running and simple maintenance;
● Deep crushing cavity and optimized rotating speed well coupled to the angle between fixed and movable jaw plate to ensure the high capacity;
● Non-lubricant toggle plate to protect the machine from being overloaded;
● Hydraulically adjustable discharging outlet, simple to operate and maintain, thus achieving the high capacity.

Application
V-Series Hydraulic Jaw Crusher From China
1 2 3
