6S Series Shaking Table
Mineral ore washing equipment Inquiry

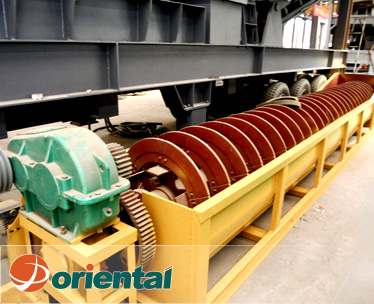

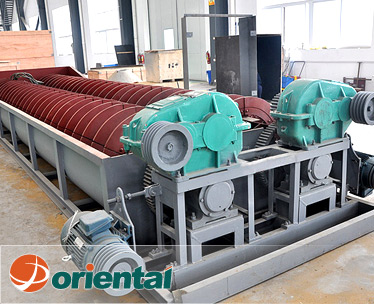

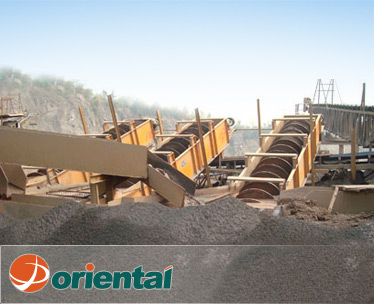

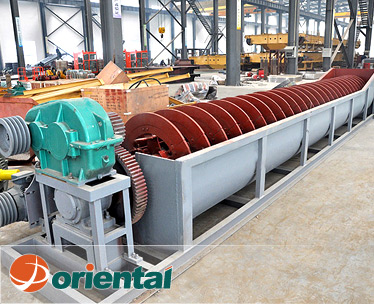

This series screw washing machine is mainly used for washing material after crushing. Small particles suspend in water flow out through outlet. Coarse particles sink down to bottom of groove and they will be pushed to the discharging end by the screw.

Technical data
Model Motor power Water consumption (t/h) Screw dia (mm) Capacity (t/h) Weight (t)
ZXL-500 7.5 6-60 500 20 2.6
ZXL-750 11 9-63 750 75 3.5
ZXL-1000 18.5 10-80 1000 100 4.8
ZXL-1200 22 13-168 1200 175 6.7
2ZXL-1200 2×22 60-600 1200 350 13
ZXL -1500 30 20-240 1500 500 12
2ZXL-1500 2×30 60-600 1500 900 23
ZXL-2000 45 100-800 2000 750 19
Note: Any change of Mineral ore washing equipment technical data shall not be advised additionally.
Features

This stone washing machine also can be used for desliming, dewatering and washing ore. This machine bears the features of simple structure, convenient maintenance, long-term continuous running, good adaptability and high capacity, etc. So it can meet the needs of modern large-scale industry production.

Application
Mineral ore washing equipment From China
