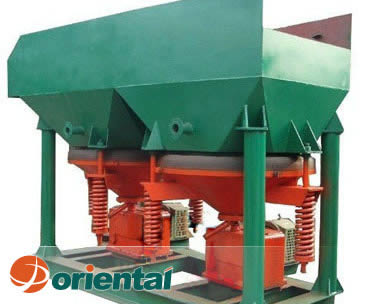

Sawtooth Wave Jigger
Sawtooth Wave Jigger Inquiry

Saw-tooth wave series jigger is one of the gravity separation equipment. It is of large capacity, wide range of sorting grain size, simple operation and maintenance, widely used as coarse or fine sorting machine in the beneficiation of gold, tin-tungsten, titanium, hematite, too, coal and other minerals.

Technical data
Model ZJT-0.15 ZJT-0.57 ZJT-1 ZJT2-2 ZJT3-1 ZJT4-2 ZJT5-2
Jigging-
room
Section
Shape
Trapezoid / Rectangle Trapezoid Trapezoid Rectangle Trapezoid Rectangle Trapezoid
Length×
Width
(mm)
200~400 ×500 450~750 ×950 450~900 ×1500 1070×1070 960~2000×1950 1510×1510 1200~2000 ×3150
Number
ofcolumns
Single Single Single Single Single Single Single
Total
number
ofrooms
1 1 1 2 1 2 2
Single-
chambe-
rarea
(m2)
0.15 0.57 1 1.14 3.3 2.43 2.12 (First-chamber) 2.77 (Second-chamber)
Totalarea
(m2)
0.15 0.57 1 2.28 3.3 4.86 5
Strokecoefficient 0.67 (Trapezoid) 1.00 (Rectangle) 0.57 0.64 0.45 1 0.68 (First-chamber) 0.55 (Second-chamber) 0.58 (First-chamber) 0.45 (Second-chamber)
Maximumfeedingsize
(mm)
5 6 5 <10 <35 <20 <8 <35 <8
Capacity (t/h) 0.2~0.3 2~6 2~3 7.5~15 10~15 12~16 10~20
WaterConsumption
(m3/h)
0.2~0.5 1~2 2~3 2~4 3~6 4~8 5~10
  Dia-
phragm
Strokeco-
efficient
(mm)
4.2~30 90~180 12,17,21 12,17,25 12,17,21 10~47Adjustable 6.5~26 15,20,25
Stroke-
times
(min-1)
  60~156 Adjustable 60~156 60~156 80~100 80~150 80~110
Motor Model ZYCT112-4B ZYCT132-4B ZYCT160-4A ZYCT32-4 ZYCT-4B ZYCT160-4B ZYCT200-4A
Power
(kw)
0.75 1.5 2.2 2.2 (One set per room) 3 (One set per two-rooms) 5.5  5.5 (One set per room) 7.5 (One set pert wo-rooms) 5.5 (One set per room ) 7.5 (One set per two-rooms)
Dimensions(mm) 734×960× 1232 1530×780× 1550 2060×1112× 1890 2870×1520× 1880 2662×2000× 3030 4240×1990× 2750 3940×2006× 2580
Total(kg) 284 612 989 1637 3260 3530 3854
Note: Any change of Sawtooth Wave Jigger technical data shall not be advised additionally.
Features

The jigger is one of the devices of the modern gravity separation. For its large capacity and a wide range of sorting particle, simple operation and maintenance, it is widely used as a rough election or selection of sorting gold, tin, tungsten, titanium, hematite, coal and other minerals. Traditional jigger is mostly the circumference eccentric drive jigger, which is not conducive to the loose of jigger bed and the proportion of stratification of mineral particles, which affects the sorting and recovery equipment. Saw-tooth wave series jigger is energy-saving gravity separation equipment developed and improved according to the law of layer theory of jigger bed stratification, and on the basis of traditional jigger. Its pulse curve is as saw-tooth waveform to make rose water faster than the dropped water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment. Its industrial test compared with the sine wave jigger: saw-tooth Jig operating recovery rate is higher than the sine wave by the sn: 3.01%, w: 5.5%, pb: 1.63%, zn: 2.04%; water consumption reduced by 30% -40%, covers reduction by 1/3, and the stroke is adjustable. The performance of Saw-tooth Wave Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.

Application
