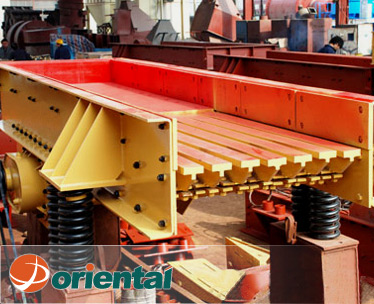

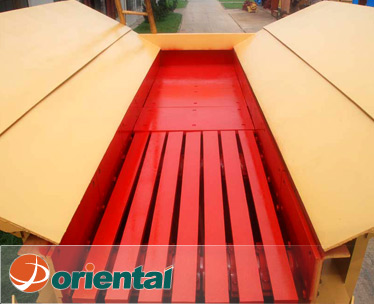

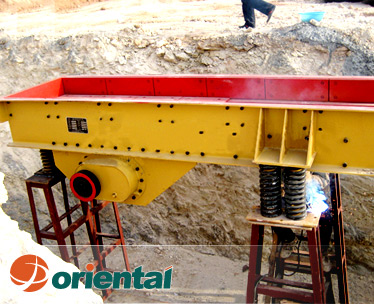

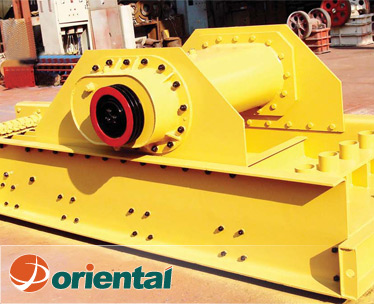

Vibrating Feeder
Vibrating Feeder Inquiry

The Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.

Technical data
Model Feeding Chute Size (mm) Max. Feeding Size(mm) Capacity(t/h) Motor Power(kw) Weight(kg) Overall Dimension(mm)
GZD-750×2500 750×2500 300 50-80 3 1590 2580×1100×1400
GZD-850×3000 850×3000 400 80-120 2X2.2 3895 3110×1800×1600
GZD-960×3800 960×3800 500 120-210 11 3980 3850×1950×1630
GZD-1100×4200 1100×4200 580 200-430 15 4170 4400×2050×1660
GZD-1100×4900 1100×4900 580 280-500 15 4520 5200×2050×1700
GZD-1300×4900 1300×4900 650 450-600 22 5200 5200×2350×1750
GZD-1500×6000 1500×6000 800 500-700 30 8670 6082×2995×2095
Note: Any change of Vibrating Feeder technical data shall not be advised additionally.
Features

● Smoothly vibrating and long service life
● Vibrating force adjustable, easy to operation.
● Low noise and power consumption
● Simple structure, easy to maintenance.

Application
Vibrating Feeder From China
1 2 3 4 5
