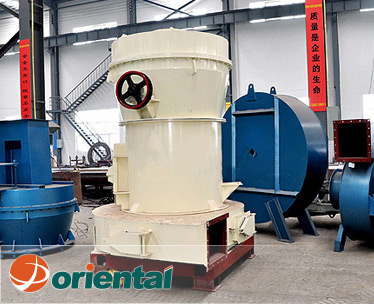

Raymond Mill
Raymond Mill Inquiry

Raymond mill is a traditional mill type, which is to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgy and chemical industry with hardness less than 7 in Moh’s scale and humidity less than 6 percent, such as: limestone, calcite, barite, dolomite, marble, talcum, gypsum, kaoline, iron ore, glass, fireproof materials, heat preservation materials, chemical materials and so on( about 300 kinds of material). The granularity of the end products can be adjusted from 30 to 325 meshes.

Technical data
Model Grinding Roller Grinding Ring Feeding Size(mm) Output Size(mm) Capacity(t/h) Motor Power (kw) Overall Dimension(mm)
Numbers
(pcs)
Diameter
(mm)
Height
(mm)
Outside
Diameter
(mm)
Height
(mm)
3R1410 3 140 100 495 100 <8 0.613-0.044 0.15-1.2 14.1 3340×2200×3200
3R2115 3 210 150 726 150 <15 0.613-0.044 0.28-1.8 28.2 4480×3100×3970
3R2615 3 260 150 865 150 <15 0.613-0.044 0.35-2.8 35.7 5000×4100×4850
3R2715 3 270 150 884 150 <15 0.613-0.044 0.40-3.4 42.7 5050×4150×4900
3R3015 3 300 150 965 150 <15 0.613-0.044 0.45-3.7 55 5200×4200×4950
4R3016 4 300 160 990 160 <20 0.613-0.044 0.6-4.5 55 5250×5000×5500
4R3216 4 320 160 1073 160 <25 0.613-0.044 1.0-5.2 72.5 7700×7200×8800
Note: Any change of Raymond Mill technical data shall not be advised additionally.
Features

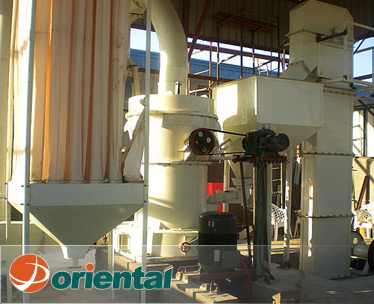

● The equipment's structure is tight, from crushing to grinding and packing all together forms an independent production system, it has advantages of covering small area, operating simple, saving work force.
● The final product has high passing screen ratio, which can achieve 99%.
● Driving system of main frame adopts airtight gearing and pulley, which secures reliable operation.
● Main parts of the grinding plant are made from cast and high quality steel, which ensures the durability of whole plant.
● With application of centralized controlling electric control system, no operator is in the operating room.

Application
