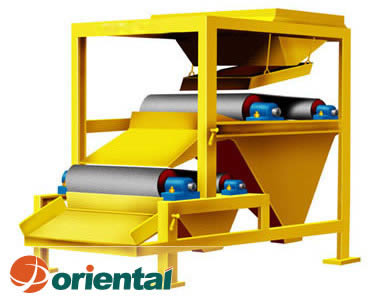

Dry Magnetic Separator
Dry Magnetic Separator Inquiry

ZCTL series of permanent magnet dry magnetic separator is the newly developed high-performance processing equipment can be widely used in metallurgy, mining and other industries.

Technical data
Model Specification Model Speed
(r/min)
Tube table magnetic induction (m/T) Capacity
(T/h)
Dimensions (mm)
L*B*H
Motor Power (kw) Weight
(kg)
Tube Diameter (mm) Tube Length (mm)
ZCTL-0816 800 1600 0-63 Determine the magnetic induction accords to the mineral nature 35-55 3053*1295*1671 7.5 2750
ZCTL-0818 800 1800 0-63 55-70 3266*1295*1671 11 3300
ZCTL-0821 800 2100 0-63 70-85 3936*1295*1671 15 3900
ZCTL-0824 800 2400 0-63 85-100 4235*1295*1671 18.5 4450
ZCTL-1021 1050 2100 0-50 100-130 4030*1545*2046 18.5 4800
ZCTL-1021 1050 2100 0-50 Determine the magnetic induction accords to the mineral nature 100-130 4150*1545*1850 18.5 4680
ZCTL-1224 1200 2400 0-50 115-150 4720*1545*1850 22 5180
Note: Any change of Dry Magnetic Separator technical data shall not be advised additionally.
Features

ZCTL series of permanent magnet dry magnetic separator is the newly developed high-performance processing equipment can be widely used in metallurgy, mining and other industries. The device has characteristics of commotion magnetic field and high separation factor, advanced structure, light weight, reliable operation and easy maintenance. This product is ideally suited for arid areas, for it can save water resources, and reduce dressing costs, opening up a new way for magnetite mining. This product is also can be driven by diesel engine, it is also available in power shortage areas. In addition to the existing styling products, we can also develop different magnetic separators according to user-specific demands on different magnetic induction and the application of different magnetic materials. These series of products can meet the needs of small, medium and large mining processing plant, welcome to negotiate business. Our company offers industrial prototype, can provide users with a small test.

Application

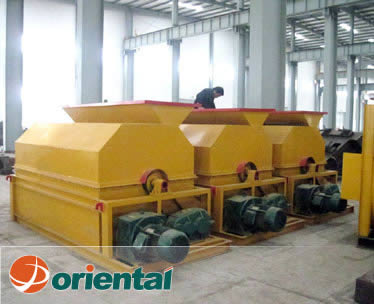

Dry Magnetic Separator From China
1 2
