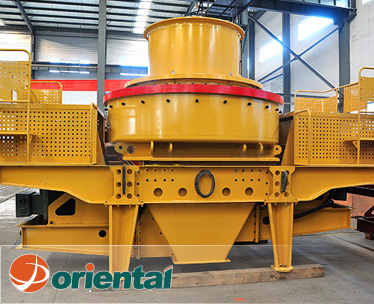

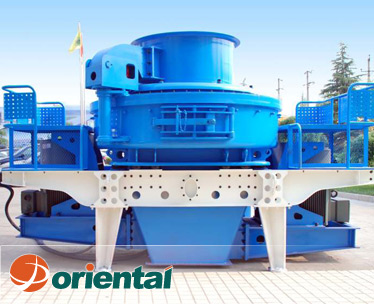

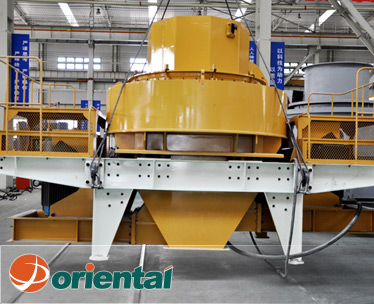

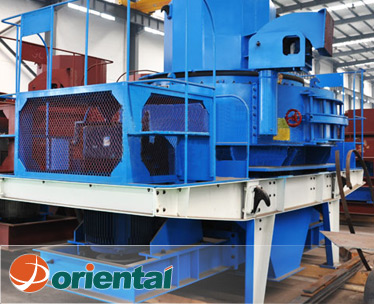

B Series VSI Crusher
B Series VSI Crusher Inquiry

The B Series VSI Crusher is improved on the basis of Germany high technology, which is highly-efficient and superior in performance. The B Series VSI Crusher is widely used to produce sand and stone for highway, high-speed railway, city project, hydropower dam constructions, and concrete mixing plant, and it’s also widely used in sand making and stone reshaping industry.

Technical data
Model VSI-7611 VSI-8518 VSI-9526 VSI-1140
Capacity(t/h) Center and Sides Feeding 120-180 200-260 300-380 450-520
Center Feeding 60-90 100-130 150-190 225-260
Max. Feeding Size (mm) Soft Material 35 40 45 50
Hard Material 30 35 40 45
Rotation Speed(rpm) 1700-1890 1520-1690 1360-1510 1180-1310
Double Motor Power (kw) 110 180 264 400
Overall Dimension
L×W×H (mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778 5000×2700×3300
Weight (t) 7.8 10.3 16 25.6
Vibrating Sensor Inspection Range: 0.1-20mm/s Continual Adjustment
Hydraulic Oil Pump Motor Power of Double Oil Pump(Kw) 2×0.31kw
Overall Dimension
L×W×H (mm)
820×520×1270
Power of Oil Tank Heater 2KW
Note: The capacity above is tested as per medium hard limestone.
Any change of B Series VSI Crusher technical data shall not be advised additionally.
Features

● the oil needed is supplied by two oil pumps, and the machine stops automatically if there is no oil; the motor can be heated automatically in winter to ensure the normal working of the machine.
● Hydraulic lifting system to check and replace the spare parts, thus it's very easy and simple to maintain.
● the bearing is of SKF and TIMKEN brand to ensure the normal working of the machine.
● unique vibrating alarm device: if the machine works abnormally, the alarm will sound to stop the machine, thus protecting the whole machine.
● Special feeding structure; rock on rock, and rock on iron to make the stones crushed and reshaped.
● Unique dustproof seal system to prevent the dust getting into the spare parts.
● unique design of material bumping angle reduces the friction between raw material and spare parts, extending the working life of spare parts and cut the cost.

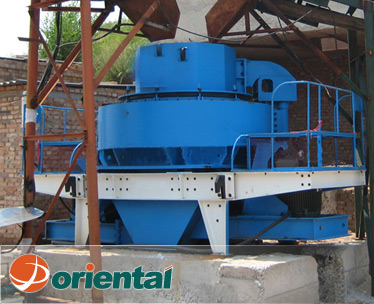

Application
B Series VSI Crusher From China
1 2 3 4 5
