New-style Fine Crusher Inquiry

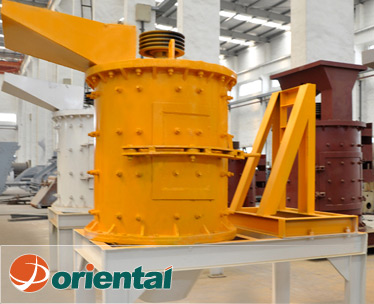

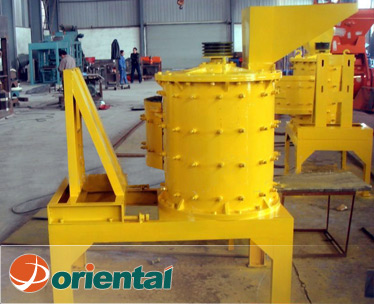

New-style fine crusher is the lastest solution of Oriental and widely used in the crushing and sand making lines.

Technical data
No. Model Diameter of Rotor(mm) Capacity(t/h) Feeding Size(mm) Output Size(mm) Speed of Main Shaft (r/min) Motor Powder(kw) Overall Dimension
(mm)
1 D-1175 1000 20-40 <120 <3-5
60-90%
769 45-75 3100X1750X1600
2 D-1390 1250 40-70 <150 <3-5
60-90%
530 75-90 3600X1700X1600
3 D-1613 1500 70-100 <180 <3-5
60-90%
495 110-132 3880X2150X2115
4 D-1816 1750 90-130 <200 <3-5
60-90%
424 132-160 4310X2157X2150
5 D-2020 2000 100-160 <220 <3-5
60-90%
370 160-200 4593X2157X2200
Note: The capacity above is tested as per medium hard limestone.
Any change of New-style Fine Crusher technical data shall not be advised additionally.
Features

● high capacity.
● High crushing ratio, lower power consumption
● Sealed well and running smoothly
● Convenient in maintenance

Application
New-style Fine Crusher Price List
