Wheel Sand Washing Machine
Wheel Sand Washing Machine Inquiry

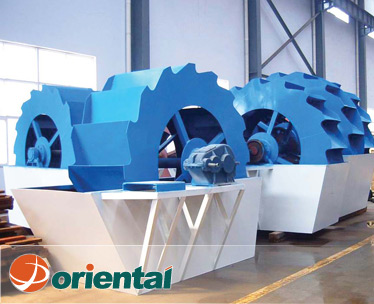

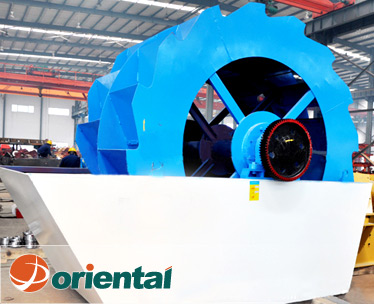

The XSD Series High-efficient Sand Washing Machine is an equipment to wash sand in coordination with the sand making machine., which is used for washing away the stone powder and impurity in the sand made by the Sand Making Machine, to increase the sand quality. This machine is widely used in washing, grading and dehydrating quartz sand in Sand stone factories, Construction site, Glass Factory and so on.

Technical data
Model Impeller Size (mm) Feeding Size (mm) Capacity (t/h) Motor Power (kw) Weight (t) Overall Dimension (mm)
XSD2610 ø2600×1000 <10 20-50 5.5 2.68 3255×1982×2690
XSD2816 ø2800×1600 <10 30-60 7.5-11 3.05 3540×3000×2880
XSD3016 ø3000×1600 <10 50-120 11-15 3.26 3845×3000×3080
XSD3620 ø3600×2000 <10 60-150 18.5 4.30 4500×3206×3480
Note: Any change of Wheel Sand Washing Machine technical data shall not be advised additionally.
Features

● The machine is with high efficiency, reasonable structure, high capacity, low consumption and easy maintenance.
● Drive Bearing device is separated from water and materials, which is greatly to avoid the bearing damaged due to soaking, touching sand and other pollutants.
● Compared with the spiral sand washing machine, the loss of medium and fine sand as well as powder is minimal, so the grade and fineness modulus of washed building sand can meet the required standard.

Application
Wheel Sand Washing Machine From China
