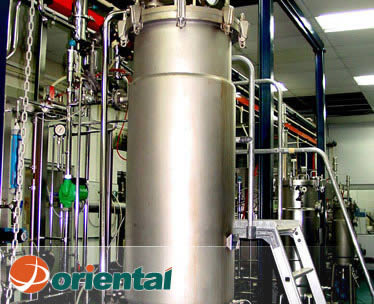

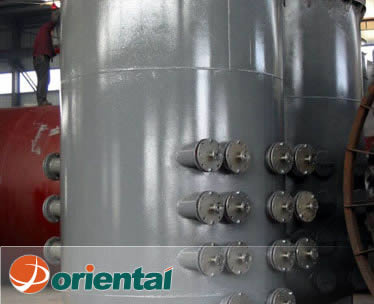

ZXB Series Stirred Tank
ZXB Series Stirred Tank Inquiry

ZXB series mining used agitating tank is applied to mix round all kinds of ore slurry. Mainly used for A variety of metallic minerals in the flotation beneficiation process or re-election before the slurry mixing, Making the beneficiation reagent and ore slurry mixed well-proportioned, it also can be used for other non-metallic slurry mixing

Technical data
Model and parameter ZXB-3000 ZXB-2500 ZXB-2000 ZXB-1500 ZXB-1000 ZXB-500
usable capacity (m³) 19.1 11.2 5.46 2.2 0.58 0.124
impeller 700 650 550 400 240 150
210 280 230 320 530 1000
Electric motor Y225S-8 180L-6 Y160M-6 132M-6 Y132S-6 Y100L-4
18.5 15 7.5 5.5 3 1.5
Trough body size Ф3000 Ф2500 Ф2000 Ф1500 Ф1000 Ф500
3000 2500 2000 1500 1000 750
Outside measurement 3610 3028 2380 1750 1130 670
3266 2640 2162 1642 1130 351
4326 3543 2846 2186 1491 1286
weight (t) 4.292 3.462 1.65 1.2 0.685 0.375
Note: Any change of ZXB Series Stirred Tank technical data shall not be advised additionally.
Features

This equipment is mainly consist of cell body, vertical axis, Cycle barrel transmission frame Motor and other components, through the vee belt to drive Vertical axis side pulley by electric motor, the bottom of the vertical axis Promote the impeller rotation, mixing the ore slurry to achieve the aim of well-distributed.
The product is suitable for 30% slurry, the solid composition of ore particle size ≤ 1mm.
