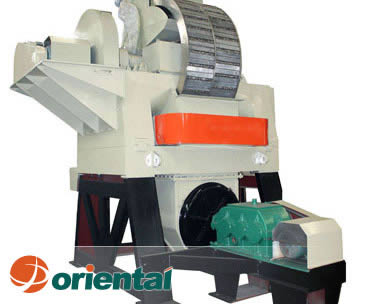

ZTLGT series high gradient magnetic separator is the best performance and the most technologically advanced high intensity magnetic separation equipment at home and abroad. This machine uses the swivel vertical rotation, recoil concentrate, and pulsating bodies, which is a fundamental solution to the world technical problems that the magnetic media between the flat ring strong magnetic separator and flat ring high gradient magnetic separator is prone to clogging. It has a large enriched ratio, a strong adaptability to the feeding size, concentration and taste, reliable, convenient to operate and maintain. This machine has reached the double advantages of high concentrate grade and high yield in separating weakly magnetic ores. |
Model Specification | ZTLGT -500 |
ZTLGT-750(Ⅰ) Experimental | ZTLGT-750(Ⅱ) Industrial | ZTLGT -1000 |
ZTLGT -1250 |
ZTLGT -1500 |
ZTLGT -1750 |
ZTLGT -2000 |
ZTLGT -2500 |
ZTLGT- 3000 |
Swivel Diameter (mm) | 500 | 750 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2500 | 3000 |
Swivel Speed (r/min) | 0.3-3 | 3 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 |
Feeding Size (mm) (-200mesh%) | -1.0 | -1.0 | -1.0 | -1.2( 30-100) |
-1.2( 30-100) |
-1.2( 30-100) |
-1.2( 30-100) |
-1.2( 30-100) |
-1.2( 30-100) |
-1.2( 30-100) |
Feeding Concentration (%) | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 |
Slurry Throughput Ability (m³/h) | 0.25-0.5 | 0.5-1.0 | 5-10 | 12.5-20 | 20-50 | 50-100 | 75-150 | 100-200 | 200-400 | 350-650 |
Dry Ore Handling Capacity (t/h) | 0.03-0.125 | 0.06-0.25 | 2-4 | 4-7 | 10-18 | 20-30 | 30-50 | 50-80 | 100-150 | 150-250 |
Rated Background Field Strength (T) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
Rated Magnetizing Current (A) | 1300 | 1100 | 860 | 650 | 900 | 950 | 1200 | 1200 | 1400 | 1400 |
Rated Magnetizing Voltage (V) | 12 | 16 | 17.5 | 26.5 | 31 | 37 | 38 | 43 | 45 | 62 |
Rated Magnetizing Power (KW) | 16 | 18 | 15 | 17 | 28 | 35 | 46 | 52 | 63 | 87 |
Swivel motor power (KW) | 0.37 | 0.55 | 0.55 | 1.1 | 1.5 | 3 | 4 | 5.5 | 11 | 18.5 |
Pulse Motor Power (KW) | 0.37 | 0.75 | 1.5 | 2.2 | 2.2 | 4 | 4 | 7.5 | 11 | 18.5 |
Pulse Stroke (mm) | 0-50 | 0-50 | 0-20 | 0-30 | 0-20 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
Pulse Stroke (r/min) | 0-400 | 0-400 | 0-400 | 0-300 | 0-300 | 0-300 | 0-300 | 0-300 | 0-300 | 0-300 |
Water Pressure (Mpa) | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.2-0.3 | 0.15-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.4 | 0.2-0.4 |
Water Consumption (m³/h) | 0.75-1.5 | 1.5-2.5 | 5-8 | 10-20 | 30-45 | 60-90 | 80-120 | 100-150 | 200-300 | 350-530 |
Cooling Water Amount (m³/h) | 1.5-2 | 1.5-2 | 1.5-2 | 2-2.5 | 2.5-3 | 3-4 | 4-6 | 5-6 | 6-7 | 8-10 |
Machine Weight (T) | 1.5 | 3 | 4 | 6 | 14 | 20 | 35 | 50 | 105 | 175 |
The Weight of The Largest Components (T) | 0.3 | 0.6 | 1 | 2.22 | 4 | 5 | 11 | 14 | 15 | 25 |
Overall Dimension (L×W×H) (mm) | 1800× 1400× 1320 |
2000× 1360× 1680 |
2000× 1360× 1680 |
2700× 2000× 2400 |
3200× 2340× 2700 |
3600× 2900× 3200 |
3900× 3300× 3800 |
4200× 3550× 4200 |
5800× 5000× 5400 |
6600× 5300× 6400 |
The applications of the machine: hematite, limonite, siderite, ilmenite, chromite, wolframite, tantalum and niobium ore, and other weakly magnetic minerals beneficiation; quartz, feldspar, nepheline, fluorite, sillimanite, spodumene and other non-metallic minerals to remove iron, and purification.
