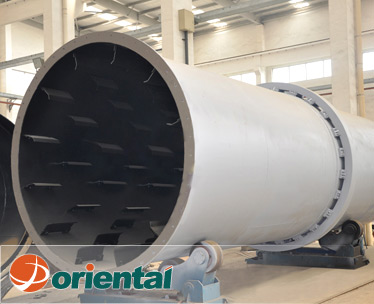

Rotary Dryer
Rotary Dryer Inquiry

The rotary dryer is mainly used in the fields of building materials, mineral processing, metallurgy, chemical industry, etc., it can be used to dry materials with specified moisture and size.

Technical data

Main Specifications of Single-Cylinder Dryer

Model Capacity(t/h) Main Motor Power(kw) Weight(t)
Φ1.2×12 2.5-4 11 13.5
Φ1.5×12 4-6 11 18.5
Φ1.5×15 5-8 18.5 20.5
Φ2.2×12 13-15 22 31.5
Φ2.2×14 14-16 22 33.4
Φ2.4×14 16-20 45 42.8
Φ2.4×18 16-20 45 42.8
Φ3×20 25-30 55 77.8
Φ3×25 28-34 55 87.5

Main Specifications of Triple-cylinder Dryer

Item Model Outer Cylinder Dia.(m) Length of Outer Cylinder(m) Cylinder Cubage(m3) Original Moisture of Slag(%) Final Moisture of Slag(%) Original Moisture of Sand(%) Final Moisture of Sand(%) Capacity(t/h) Motor Power(kw)
Slag Sand
Φ2.2×7.0 2.2 7.0 26.59 10-12 1 8-10 0.5-1 20-25 22-26 5.5×4
Φ2.6×7.0 2.6 7.0 31.84 10-12 1 8-10 0.5-1 26-29 26-32 5.5×4
Φ2.8×7.0 2.8 7.0 36.93 10-12 1 8-10 0.5-1 28-32 30-35 7.5×4
Φ3.0×7.0 3.0 7.0 52.68 10-12 1 8-10 0.5-1 40-45 45-48 11×4
Φ3.2×7.0 3.2 7.0 56.27 10-12 1 8-10 0.5-1 42-46 45-50 11×4
Φ3.6×8.0 3.6 8.0 81.38 10-12 1 8-10 0.5-1 55-65 60-70 15×4
Φ3.8×8.0 3.8 8.0 90.68 10-12 1 8-10 0.5-1 65-70 71-75 18.5×4
Note: Any change of Rotary Dryer technical data shall not be advised additionally.
Features

● Wide applicability, available for many kinds of materials;
● Simple operation, stable performance;
● Low investment, high efficient and capacity;
● Low cost in maintenance.

Application
