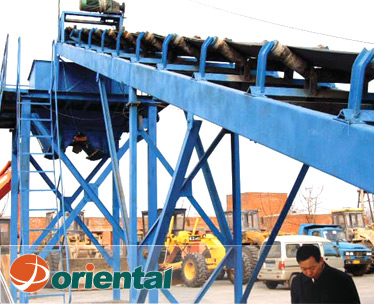

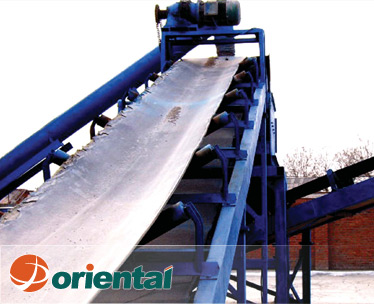

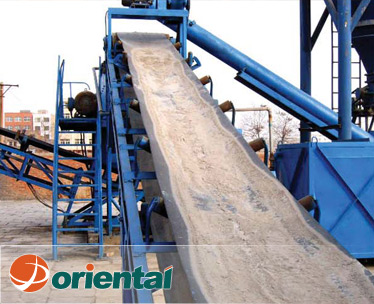

The Belt Conveyor is used for transferring material in bulk or container. The belt conveyor is widely used in the industry of mining, building materials, metallurgy, coal and so on. Users can not only transport material with one conveyor or several conveyors, but also can transport with a horizontal/slope transfer system that made up by this kind of conveyors and other conveyors so that can meet the request of different working conditions. It can transport materials in large quantity. It is simple in operation, convenient in maintenance, superior quality. |
Model | Belt Width(mm) | Nominal Power(kw) | Conveyor Speed(m/s) | Capacity (t/h) |
B400 | 400 | <12m=2.2 | 0.8-2.0 | 40-80 |
12m-19m=3 | ||||
20m-25m=4 | ||||
B500 | 500 | <12m=4 | 0.8-2.0 | 78-191 |
12m-19m=5.5 | ||||
20m-30m=7.5 | ||||
B650 | 650 | <12m=4 | 0.8-2.0 | 131-323 |
12m-19m=5.5 | ||||
20m-30m=7.5 | ||||
B800 | 800 | <10m=5.5 | 1.0-2.0 | 278-546 |
10m-15m=7.5 | ||||
16m-20m=11 | ||||
21m-25m=15 | ||||
26m-30m=18.5 | ||||
B1000 | 1000 | <10m=7.7 | 1.0-2.0 | 435-853 |
10m-15m=11 | ||||
16m-23m=15 | ||||
24m-30m=22 | ||||
B1200 | 1200 | <10m=11 | 1.0-2.0 | 650-1020 |
10m-17m=15 | ||||
18m-22m=18.5 | ||||
23m-26m=22 | ||||
27m-30m=30 | ||||
B1400 | 1400 | <10m=15 | 1.0-2.0 | 821-1232 |
10m-15m=18.5 | ||||
15m-18m=22 | ||||
19m-23m=30 | ||||
24m-27m=37 | ||||
28m-30m=45 |
● The belt conveyors made of SJLC(heat and cold resisted material) can be operated in the temperature situation ranging from -20℃ to +40℃. The temperature of transferred material by this belt conveyor should be lower than 50℃.
● Simple in structure, easy to maintain, long service life, high transfer capacity.
