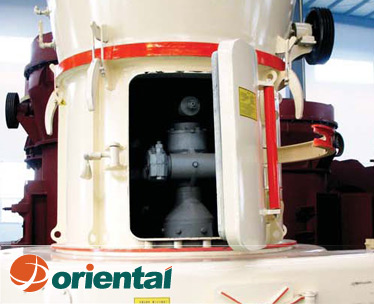

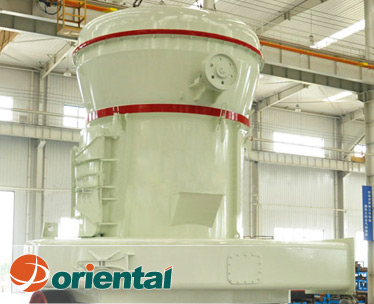

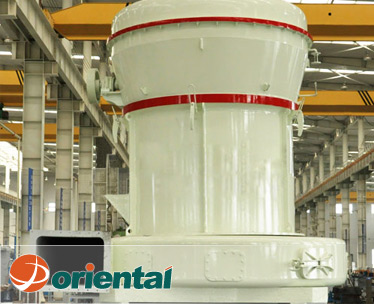

High Pressure Mill is an improved type of Raymond mill. The purpose of the this kind mill is to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgies and chemical industry with hardness less than 9.3 in Moh’s scale and humidity less than 6 percent. Examples of the materials are: quartz, feldspar, barite, fluorite, dolomite, garnet, bauxite, zircon, marble, calcite, iron ore, rock phosphate, coal, slag and so on(400 kinds of material). The granularity of the final products can be changed from 30 to 425 meshes. |
Model | Grinding Roller | Grinding Ring | Feeding Size (mm) | Output Size(mm) | Capacity(t/h) | Motor Power (kw) | Overall Dimension(mm) | |||
Numbers (pcs) |
Diameter (mm) |
Height (mm) |
Outside Diameter (mm) |
Height (mm) |
||||||
YGM75 | 3 | 260 | 150 | 865 | 150 | <15 | 0.613-0.033 | 0.4-3.1 | 35.7 | 5000×4100×4850 |
YGM85 | 3 | 270 | 140 | 907 | 140 | <20 | 0.613-0.033 | 0.5-4.0 | 42.7 | 5150×5000×5200 |
YGM95 | 4 | 310 | 170 | 1050 | 170 | <25 | 0.613-0.033 | 1.1-5.6 | 72.5 | 7550×7400×8100 |
YGM130 | 5 | 410 | 210 | 1400 | 210 | <30 | 0.613-0.033 | 2.2-9.5 | 172.5 | 8510×8000×9645 |
YGM160 | 6 | 440 | 270 | 1740 | 270 | <35 | 0.613-0.033 | 8-22 | 275 | 12550×5700×8355 |
● Higher output. Its output increases by 10%-20% comparing with Raymond mill under the same power condition.
● Larger range of final fineness. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).
● Good dust control. High Pressure Suspension Mill meets the requirement of national dust-dump standard.

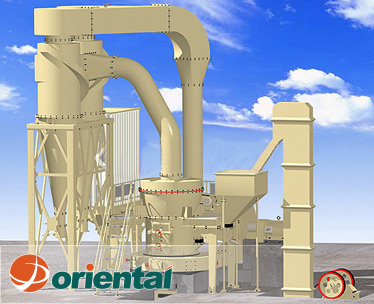

● Easy to operate. The whole system is combined by some independent systems, and the cohesion between the systems is good.
● Excellent sealing. The multi-class seals are adopted to keep the grinding equipment tight closed.
