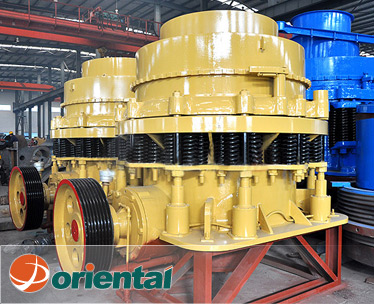

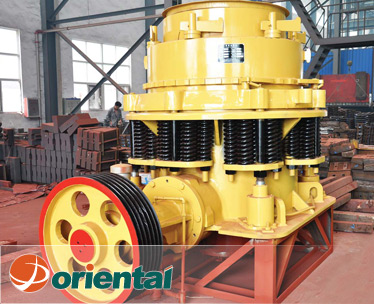

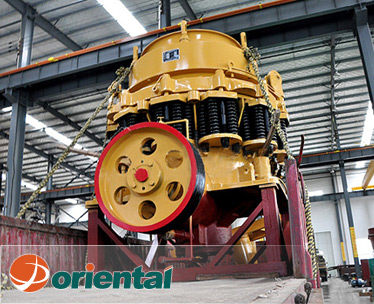

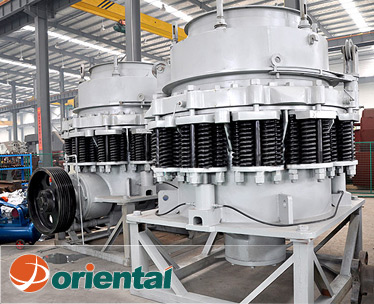

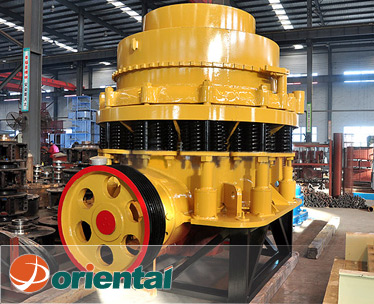

ZTS Cone Crusher
ZTS Cone Crusher Inquiry

The ZTS Cone Crusher is a high-performance model optimized and improved on the basis of PY Spring Cone Crusher. The ZTS Cone Crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgies and so on. The ZTS Cone Crusher can crush materials with middle and high hardness, such as, metal ore, basalt, granite, limestone, cobblestone, sandstone and so on.

Technical data
Model Cavity Size Max Feeding Size(mm) Adjusting Range of Output Size(mm) Capacity(t/h) Motor Power (KW) Weight (t) Overall Dimension(mm)
ZTS36B Fine 85 9~22 45~91 75 14.5 2656×1746×2410
Coarse 150 13-38 59~163
Extra Coarse 152 25-38 118~163
ZTS36D Fine 35 3~13 27~90 15
Medium 65 5~16 36~100
Coarse 85 6~19 59~129
ZTS51B Fine 115 13~31 109~181 160 26.5 2958×2354×3156
Medium 178 16~38 132~253
Coarse 205 19~51 172~349
Extra Coarse 220 25~51 236~358
ZTS51D Fine 54 3~16 36~163 27
Medium 76 6~16 82~163
Coarse 89 8~25 109~227
Extra Coarse 113 16~25 209~236
ZTS66B Fine 178 16~38 181~327 220 51 3941×2954×3771
Medium 205 22~51 258~417
Coarse 228 25~64 299~635
Extra Coarse 313 38~64 431~645
ZTS66D Fine 60 5~13 90~209 52
Medium 76 6~19 136~281
Coarse 113 10~25 190~336
Extra Coarse 125 13~25 253~336
ZTS84B Fine 236 19~38 381~726 315 90 4613×3251×4732
Medium 284 25~51 608~998
Coarse 314 31~64 789~1270
Extra Coarse 391 38~64 880~1361
ZTS84D Fine 89 5~16 190~408 92
Medium 113 10~19 354~508
Coarse 151 13~25 454~599
Extra Coarse 172 16~25 508~653
Note: The capacity above is tested as per medium hard limestone.
Any change of ZTS Cone Crusher technical data shall not be advised additionally.
Features

● Customers can choose suitable crushing chamber of each model according to the material feature, fineness of the end product and particle size requirement.
● Unique dustproof and sealing structure extend working life of lubricants and other spare parts
● The key parts are made of special materials to make the strong crushing force possible,
● Equipped with long crushing arm to ensure huge stroke, strong crushing force, and high capacity.
● Hydraulic cleaning system keeps the cavity clean, and it's easy to operate, thus reducing the stoppage of machines.
● Reliable performance, low investment, and long service life of quick-wear parts.

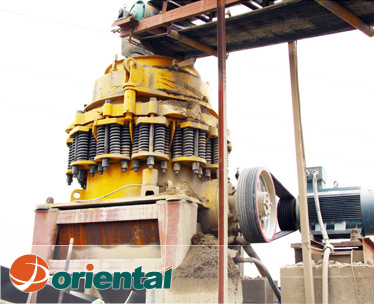

Application
ZTS Cone Crusher From China
