Oriental-HCC Cone Crusher

HCC Cone Crusher Inquiry

The machine is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgy and so on. It can crush materials with middle and high hardness such as ironstone, copper ore, granite, basalt, cobblestone, marble, limestone and so on. It is widely used in the high automatic crushing line which has strict requirement for the shape and crushing ratio of the end products.

Technical data

Model	Chamber Size	Max Feeding Sizes(mm)	Adjusting Range of Output Size(mm)	Capacity(t/h)	Motor Power (kw)	Weight (t)	Overall Dimension(mm)
HCC-75B	Fine	85	9~22	46~94	75	10	2656×1746×2241
	Coarse	150	13-38	61~168
	Extra Coarse	152	25-38	122~168
HCC-75D	Fine	35	3~13	28~93		10.5
	Medium	65	5~16	37~103
	Coarse	85	6~19	61~133
HCC-160B	Fine	115	13~31	112~189	160	22.5	2983×2354×3156
	Medium	178	16~38	136~261
	Coarse	205	19~51	177~359
	Extra Coarse	220	25~51	243~369
HCC-160D	Fine	54	3~16	37~168		22.6
	Medium	76	6~16	84~168
	Coarse	89	8~25	112~234
	Extra Coarse	113	16~25	215~243
HCC-220B	Fine	178	16~38	186~337	220	43.3	3911×2870×3771
	Medium	205	22~51	266~430
	Coarse	228	25~64	308~654
	Extra Coarse	313	38~64	444~664
HCC-220D	Fine	60	5~13	93~215		43.9
	Medium	76	6~19	140~289
	Coarse	113	10~25	196~346
	Extra Coarse	125	13~25	261~346
HCC-315B	Fine	236	19~38	392~748	315	86.7	4613×3302×4638
	Medium	284	25~51	626~1028
	Coarse	314	31~64	813~1308
	Extra Coarse	391	38~64	906~1402
HCC-315D	Fine	89	5~16	196~420		89.5
	Medium	113	10~19	365~523
	Coarse	151	13~25	468~617
	Extra Coarse	172	16~25	523~673

Note: The capacity above is tested as per medium hard limestone.
Any change of HCC Cone Crusher technical data shall not be advised additionally.

Features

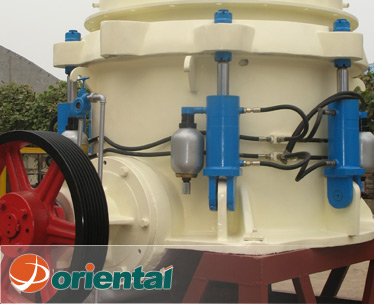

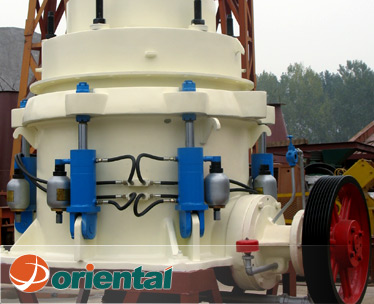

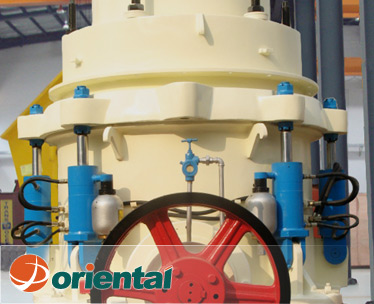

● HCC Hydraulic Cone Crusher is equipped with a hydraulic protecting system including protecting oilcan, locking oilcan and hydraulic driving oilcan, which deal with all kinds of problems during the operation without disassembling the machine;
● It is easy in operation, reliable in performance and adjustable in the size of the end products;
● The crushing cavity is specially designed according to the inter-particle laminating principle. The specially-designed cavity and the adjustable rotating speed improve the crushing ratio and capacity as well as the percentage of cubically shaped products;
● If something abnormal happens, for instance, the iron is fed into the crushing cavity, or there is a jam in the cavity, the upper cover will be lift up and the materials will be discharged automatically, thus obviating the stoppage of machines to discharge the materials with human help. And it's also easy to maintain, and the cost is much lower than PY Spring Cone Crusher;
● Its reliable performance is guaranteed by the hydraulic adjusting system and dilute oil lubricating system. The labyrinth-like sealing system eliminates the mixture between water and oil in the traditional PY Spring Cone Crusher;
● The mantle and bowl liner are made of high manganese steel. The special design of crushing cavity and inter-particle laminating principle reduce the abrasion of spare parts, thus the service time 30%-80% longer than that of traditional cone crushers.
