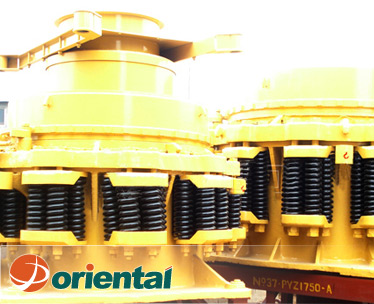

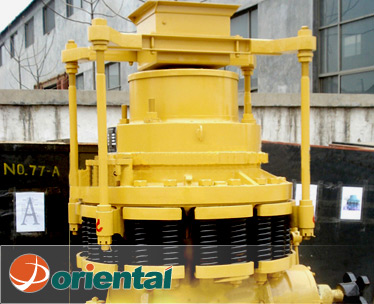

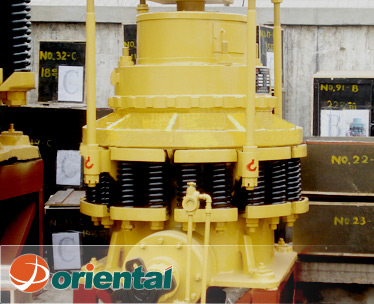

PY Spring Cone Crusher Inquiry
The PY Spring Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgies and so on. The Cone Crusher can crush materials with Moh’s scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing. |
Model | Max. Feeding Sizes (mm) | Adjustable Range of Output Size(mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall Dimension (mm) |
PYB600 | 65 | 12-25 | 10-25 | 30 | 5 | 2234×1370×1675 |
PYD600 | 35 | 3-13 | 5-20 | 30 | 5.5 | 2234×1370×1675 |
PYB900 | 115 | 15-50 | 50-90 | 55 | 11.2 | 2692×1640×2350 |
PYZ900 | 60 | 5-20 | 20-65 | 55 | 11.2 | 2692×1640×2350 |
PYD900 | 45 | 3-13 | 15-50 | 55 | 11.3 | 2692×1640×2350 |
PYB1200 | 145 | 20-50 | 110-168 | 110 | 24.7 | 2790×1878×2844 |
PYZ1200 | 100 | 8-25 | 42-135 | 110 | 25 | 2790×1878×2844 |
PYD1200 | 50 | 3-15 | 18-105 | 110 | 25.6 | 2790×1878×2844 |
PYB1750 | 215 | 25-60 | 280-480 | 160 | 50.3 | 3910×2894×3809 |
PYZ1750 | 185 | 10-30 | 115-320 | 160 | 50.3 | 3910×2894×3809 |
PYD1750 | 85 | 5-15 | 75-230 | 160 | 50.4 | 3910×2894×3809 |
PYB2200 | 300 | 30-60 | 490-800 | 260/280 | 80 | 4622×3302×4470 |
PYZ2200 | 230 | 10-30 | 200-580 | 260/280 | 80 | 4622×3302×4470 |
PYD2200 | 100 | 5-15 | 120-340 | 260/280 | 81.4 | 4622×3302×4470 |
● High capacity and superior quality;
● Long working life of quick-wear parts, and low investment;
● Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time.
